Services

At Compass HV Services Ltd we strive to meet the needs of our clients by delivering a professional service that fulfils the customers’ requirements.

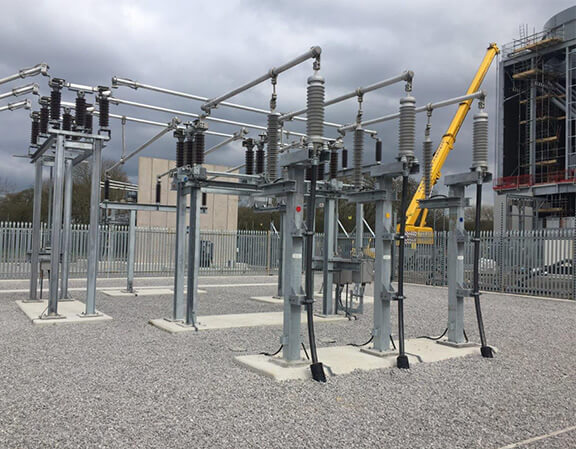

We provide a comprehensive commissioning service, delivering engineering solutions.

Our Commissioning Services Include:

High Voltage AC and DC pressure testing
Primary Injection
Secondary Injection

Millivolt Resistance testing
G99 Protection testing (to relevant standards)
Full range of transformer protection testing
Switchgear function and control testing
SCADA interface testing

Accelerated Loss of Mains Change programme (ALoMCP):

The ALoMCP is an industry programme that was launched by National Grid ESO in collaboration with UK Distribution Network Operators in October 2019. The purpose of the programme is, to prove funding support to network generation assets, who need to make changes to their Loss of Mains (LoM) protection, in order to remain compliant with the current version of EREC G59/3-7.

Owners of generation equipment have until 31st August 2022 to update their protection settings in order to comply with the requirements

ENA Registered Contractor
DNO Approved
Completed ENA Proforma/delivery Assurance policy
Time/Date Stamped Evidence
Site Surveys / Asset data Collection
Relay Upgrade/Product Supply

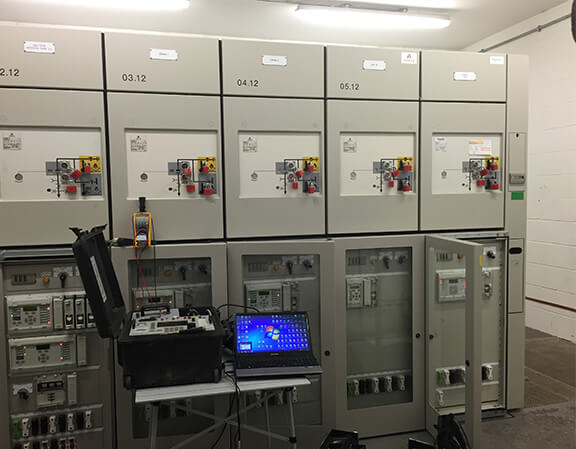

Our Network Protection Services Include:

Protection Maintenance covering all protection relays/functions
Inter-tripping Schemes
Auto reclose schemes
Auto changeover schemes
G99/G59 protection
Generator Control schemes

Network Design Services Include:

Network co-ordination/protection surveys
Network fault level studies
Generation of protection relay settings files
Design of programmable scheme logic files (PSL’s)

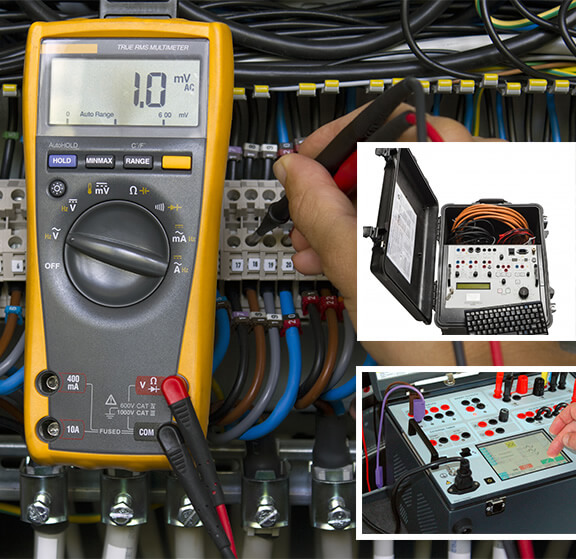

In House Test Equipment:

All of the above is carried out using the following test equipment

Sverker 900 - 3 phase Current & voltage injection test set
KoCoS Artes- 3ph Current & voltage injection test set with touch screen
ADM-200P 200A secondary injection test set
ADM 100 100A secondary injection test set and filter unit
DVS 3 - 3 phase voltage injection test set
ADM 750A - Primary injection test set
70kV AC Pressure test set
Digital Multimeters
5kV Insulation Resistance testers
1kV Insulation Resistance testers
10A – Millivolt Resistance test set
Clamp meters
Clip on ammeters

All engineers carry laptops with associated relay communications software for various types of protection relays. All equipment is periodically calibrated. Calibration certificates are available upon request.
